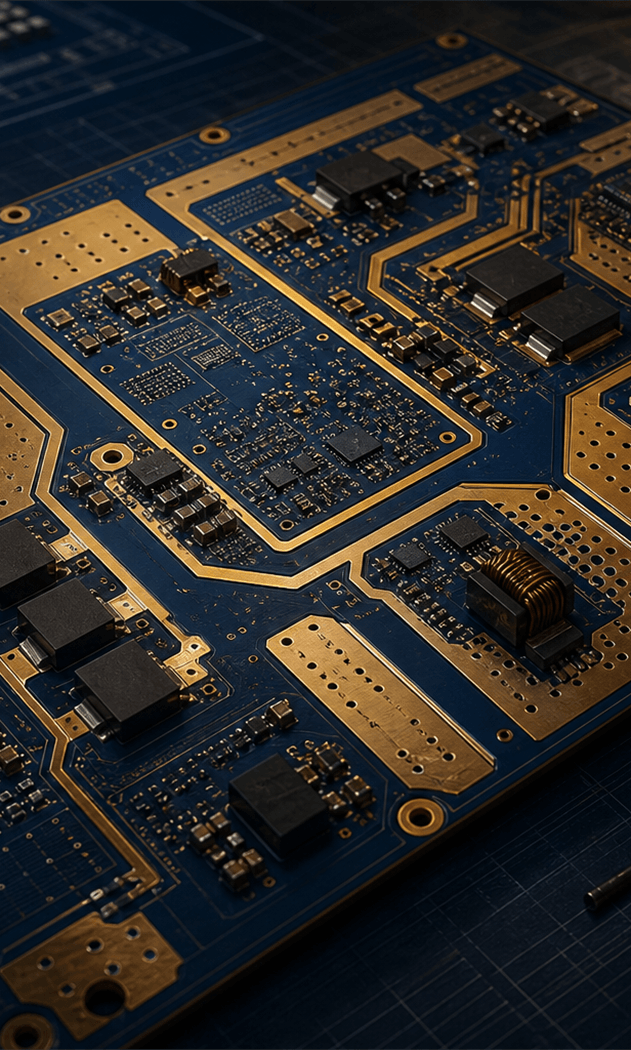

High Voltage and Power PCB Design
High-current power boards and motor driver circuits are designed within IPC-2221 standards, including conductor width, thermal via array, and insulation distances (creepage/clearance).
Intechron kapsamı
- Power-plane copper weight optimization (1 oz – 4 oz)
- IPC-2221 and UL/CE compliant conductor spacing rules
- High-frequency power converter layout and parasitic inductance minimization
Our Work Process
How We Work
We systematically execute all engineering activities from needs analysis to operational acceptance in accordance with customer requirements, technical standards, and verification/test criteria.
01
Requirements Analysis & System Definition
Requirements Analysis & System Definition
02
Architecture Design
We integrate hardware, software, mechanical, and interface components into a holistic system architecture.
03
Detailed Design
We translate system architecture into production-ready electronic, software, and mechanical designs.
04
Prototype & Verification
We bring designs to life through prototypes, verifying functional and requirements compliance.
05
Test & Qualification
We subject products to functional, environmental, and performance testing in accordance with applicable standards.
06
Production
We transition validated designs to production based on quality, traceability, and repeatability principles.
