VPX Chassis — Backplane
Backplane

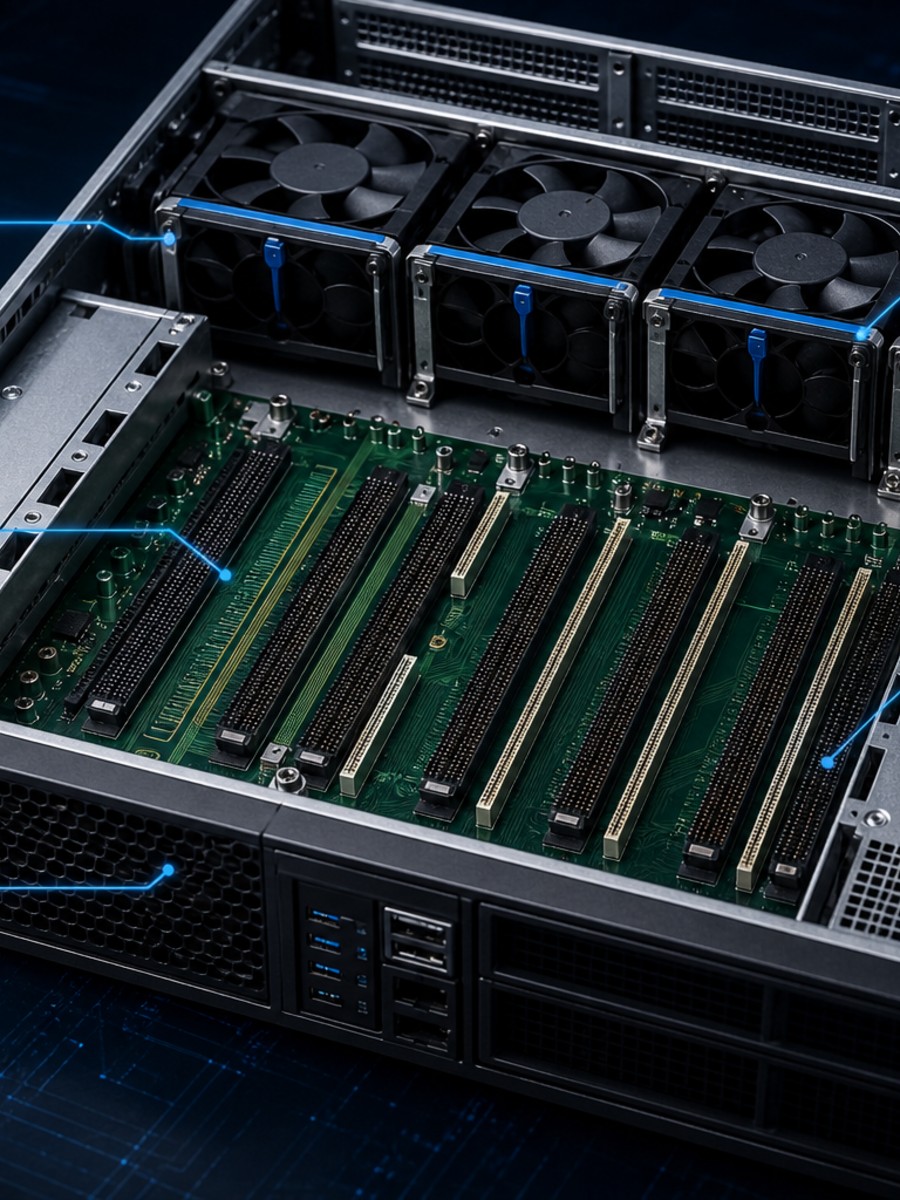

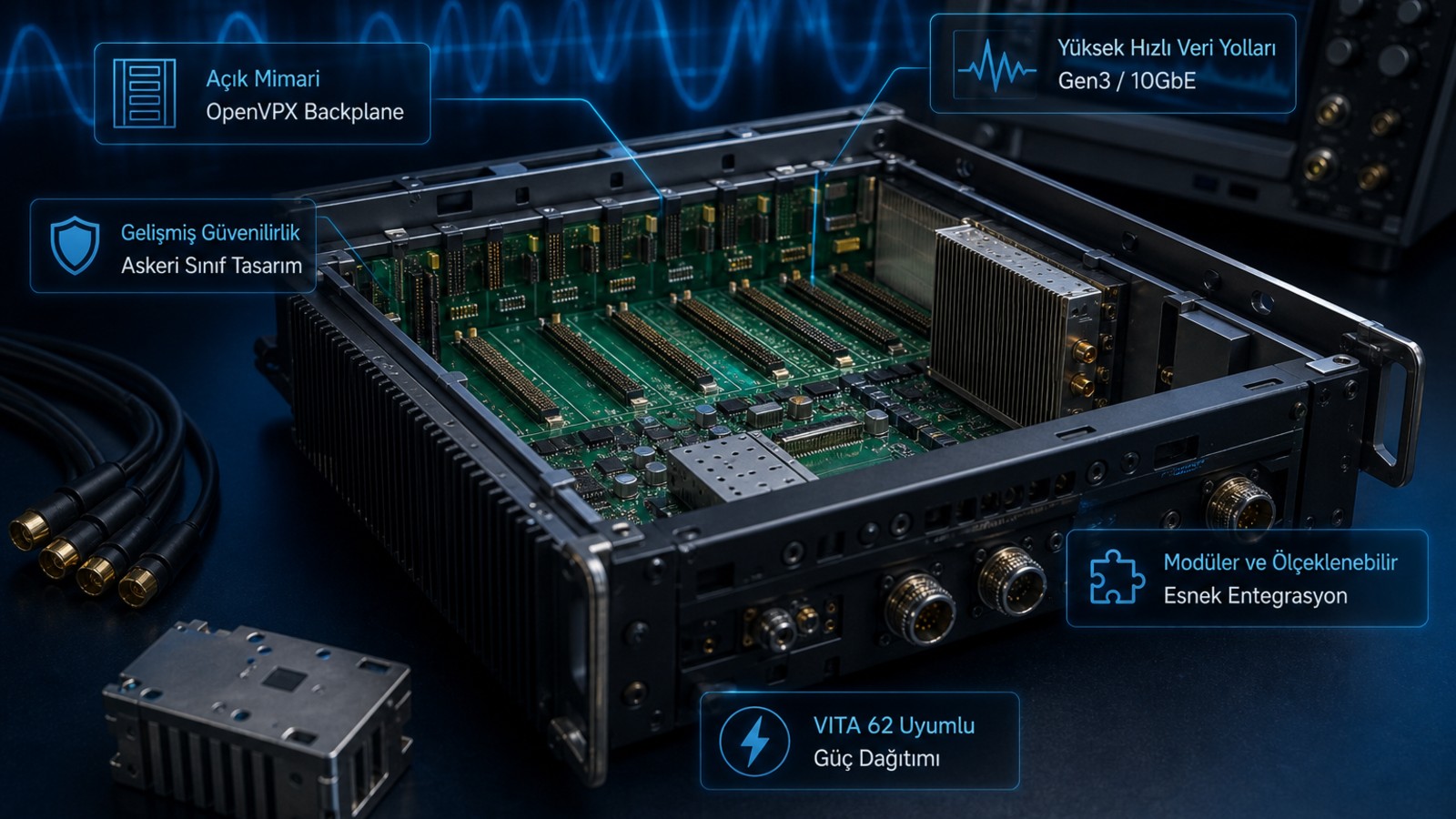

VPX Backplane is an 8-slot modular infrastructure board, developed for electronic warfare, radar, and mission computer systems, based on VITA/OpenVPX/SOSA principles. It provides high-speed data, control, management, clock, and power distribution among all modules in the chassis over a single printed circuit board.
- Slot:8-Slot
- Standard:OpenVPX
- Compliance:SOSA Compliant
- Fabric:PCIe Gen3
- VITA:VITA 62
Technical Specifications
| Feature | Value / Description |
|---|---|
| Slot Structure | 8-slot: 1× Power, 1× SBC, 1× Switch, 1× Clock, 3–5× Payload |
| Data Plane | PCIe Gen3 x4/x8 — switch-centered fabric (40GBASE-KR4 option) |
| Control Plane | 10GBASE-KR4 Ethernet |
| Expansion Plane | UTP 10GBASE-KR — optional secondary data plane |
| Clock Plane | Radial low-jitter clock distribution — via P1 connector |
| Management | IPMB-A/B, VITA 46.11 compliant, IPMI (I2C-based chassis management) |
| Power Rails | +12V, +3.3V, +5V, ±12V AUX (VITA 62 approach) |
| RF Expansion (P2) | VITA 67.3 — nano-coax (up to 20×) or optical MT connector |
| Debugging | Includes JTAG chain |
Technical specifications
Modular infrastructure advantages
Provides a fully modular VPX solution with VITA 67 optical/coaxial interconnect support, high-speed switch backplane options, and field/lab ATE integration.
- VITA 67 optical/coaxial interconnect support
- Ruggedized mechanical design
- High-speed switch backplane options
- Field and laboratory ATE integration
Conclusion
Reliable performance, on-time delivery
The modular backplane architecture enables scalable and sustainable system integration on mission-critical platforms.
