FPGA + SDR

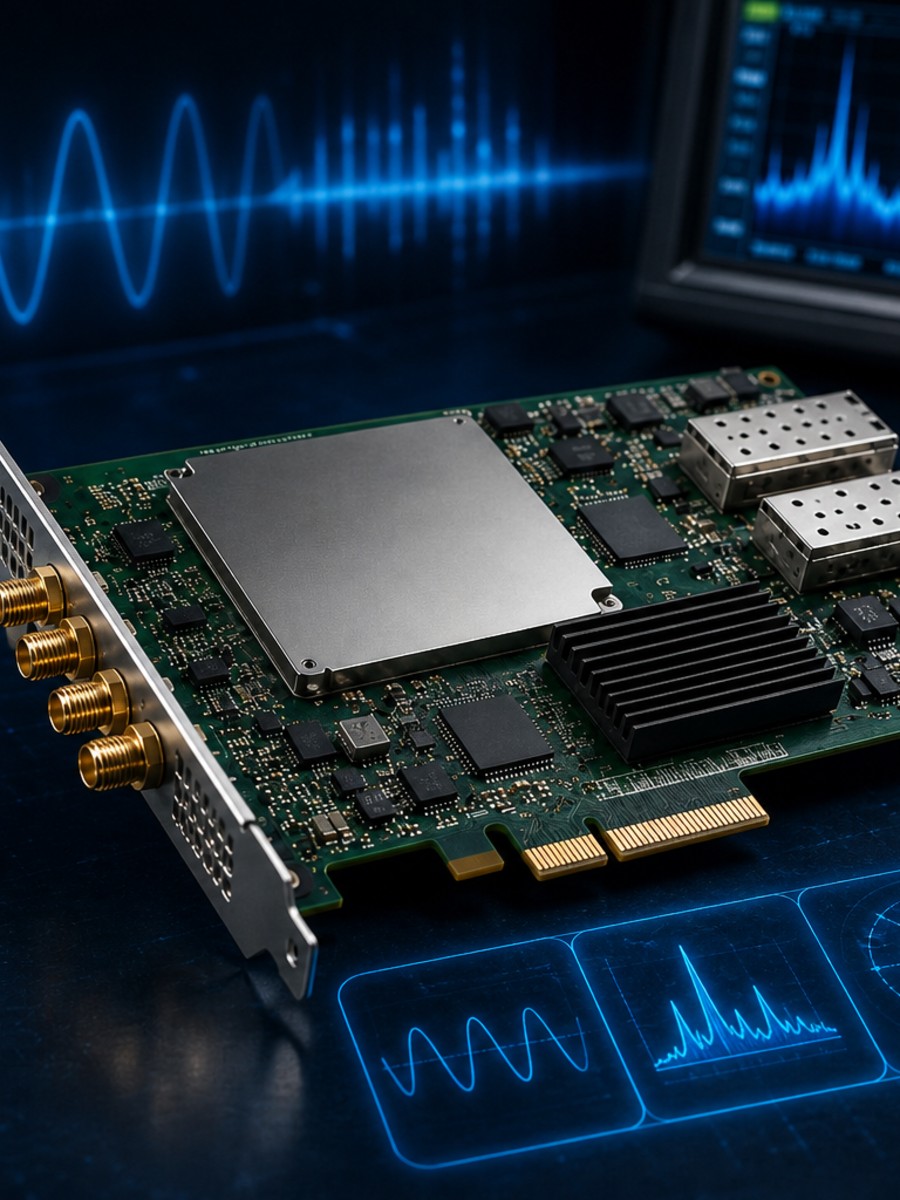

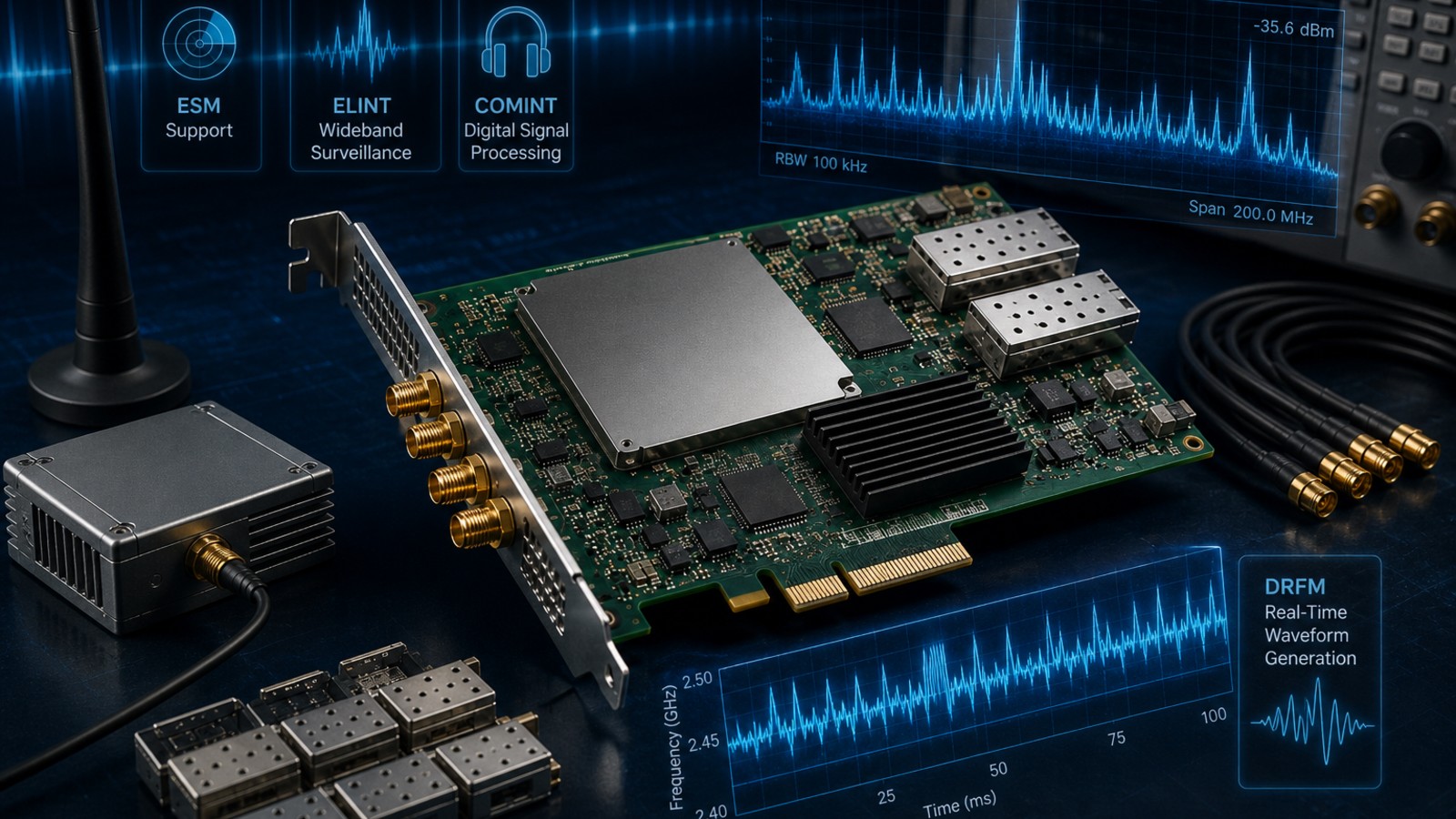

FPGA+SDR Hardware combines high processing power, FPGA acceleration capability, and wideband RF data processing infrastructure in a compact architecture.
The platform offers a flexible and mission-oriented solution for radar warning receivers, electronic support systems (ESM), electronic intelligence (ELINT), communications intelligence (COMINT), DRFM-based deception systems, and jammer applications.
While the dual phase-coherent receiver structure provides advantages in coherent processing and direction-finding applications, the wideband receiver mode enables effective use in electronic warfare and intelligence missions requiring high instantaneous bandwidth. With its compact dimensions, ~200 g weight, and maximum 25 W power consumption, it is suitable for platforms where size, weight, and power (SWaP) constraints are critical.
The platform offers a flexible and mission-oriented solution for radar warning receivers, electronic support systems (ESM), electronic intelligence (ELINT), communications intelligence (COMINT), DRFM-based deception systems, and jammer applications.
While the dual phase-coherent receiver structure provides advantages in coherent processing and direction-finding applications, the wideband receiver mode enables effective use in electronic warfare and intelligence missions requiring high instantaneous bandwidth. With its compact dimensions, ~200 g weight, and maximum 25 W power consumption, it is suitable for platforms where size, weight, and power (SWaP) constraints are critical.
- FPGA:Zynq UltraScale+
- Application:ESM / ELINT / COMINT / ECM / DRFM
- SWaP:Low SWaP
- Platform:UAV / UCAV
Technical Specifications
| Feature | Value / Description |
|---|---|
| Processor | Quad-core ARM Cortex-A53, 1.5 GHz |
| Real-Time Core | Dual Cortex-R5F, 600 MHz |
| DSP Slice | 1248 |
| PS Memory | 4 GB DDR4 |
| PL Memory | 1 GB DDR4 |
| Flash | 32 MB QSPI + 32 GB eMMC |
| Rx Mode 1 | 2 × 220 MHz phase-coherent channels |
| Rx Mode 2 | 1 × 450 MHz wideband channel |
| Tx | 2 × 450 MHz channel |
| Sampling | 245 MHz Complex / 490 MSPS |
| Data Interface | JESD204B — 12 Gbps |
| Power | Maximum 25 W |
| Size | 115 mm × 105 mm |
| Weight | Approximately 200 g |
| Operating Temperature | -40 °C ... +70 °C |
Application areas
Operational advantages & Application Areas
The flexible RF architecture enables easy adaptation of the platform to different mission scenarios. The dual 220 MHz phase-coherent receiver structure provides strong infrastructure for phase-comparison direction finding, interferometry, and coherent processing applications.
The single 450 MHz wideband receiver mode enables rapid monitoring of wide spectrum in ESM, ELINT, and COMINT missions; capturing and analyzing short-duration RF emissions becomes easier.
The 2 × 450 MHz transmit capability makes the platform suitable for electronic attack, jamming, DRFM-based deception, and SDR communications applications.
The single 450 MHz wideband receiver mode enables rapid monitoring of wide spectrum in ESM, ELINT, and COMINT missions; capturing and analyzing short-duration RF emissions becomes easier.
The 2 × 450 MHz transmit capability makes the platform suitable for electronic attack, jamming, DRFM-based deception, and SDR communications applications.
- Electronic Support (ESM)
- Communications Intelligence (COMINT)
- DRFM-Based Deception Systems
- Wideband Spectrum Monitoring Systems
- UAV and UCAV Payloads
- Electronic Intelligence (ELINT)
- Electronic Attack (ECM)
- Radar Warning Receivers (RWR)
- SDR Communication Systems
Conclusion
Low SWaP, high performance
While the dual phase-coherent receiver structure provides coherent processing advantages, the wideband receiver mode offers wide-spectrum monitoring capability in ESM, ELINT, and COMINT missions.
