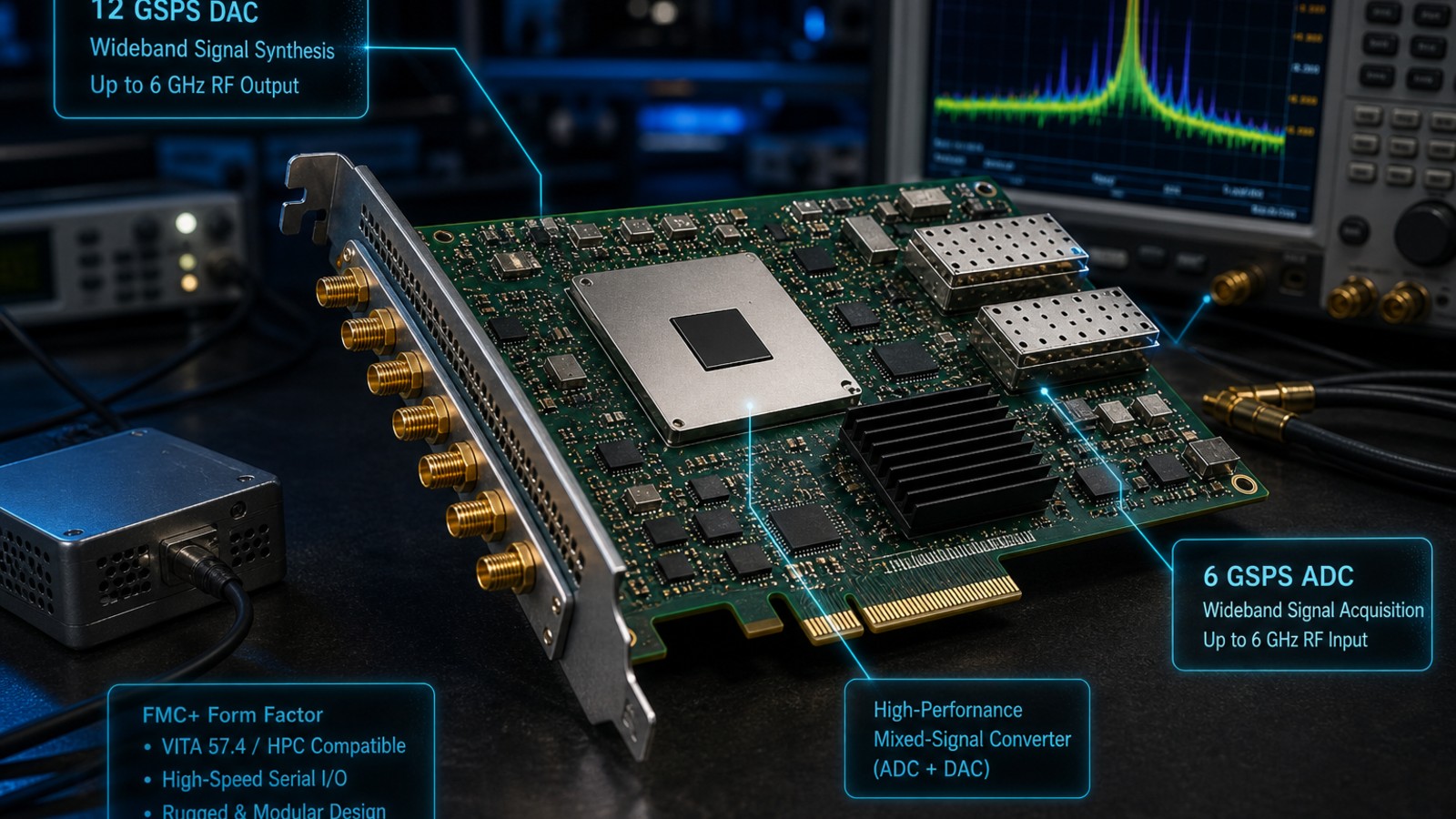

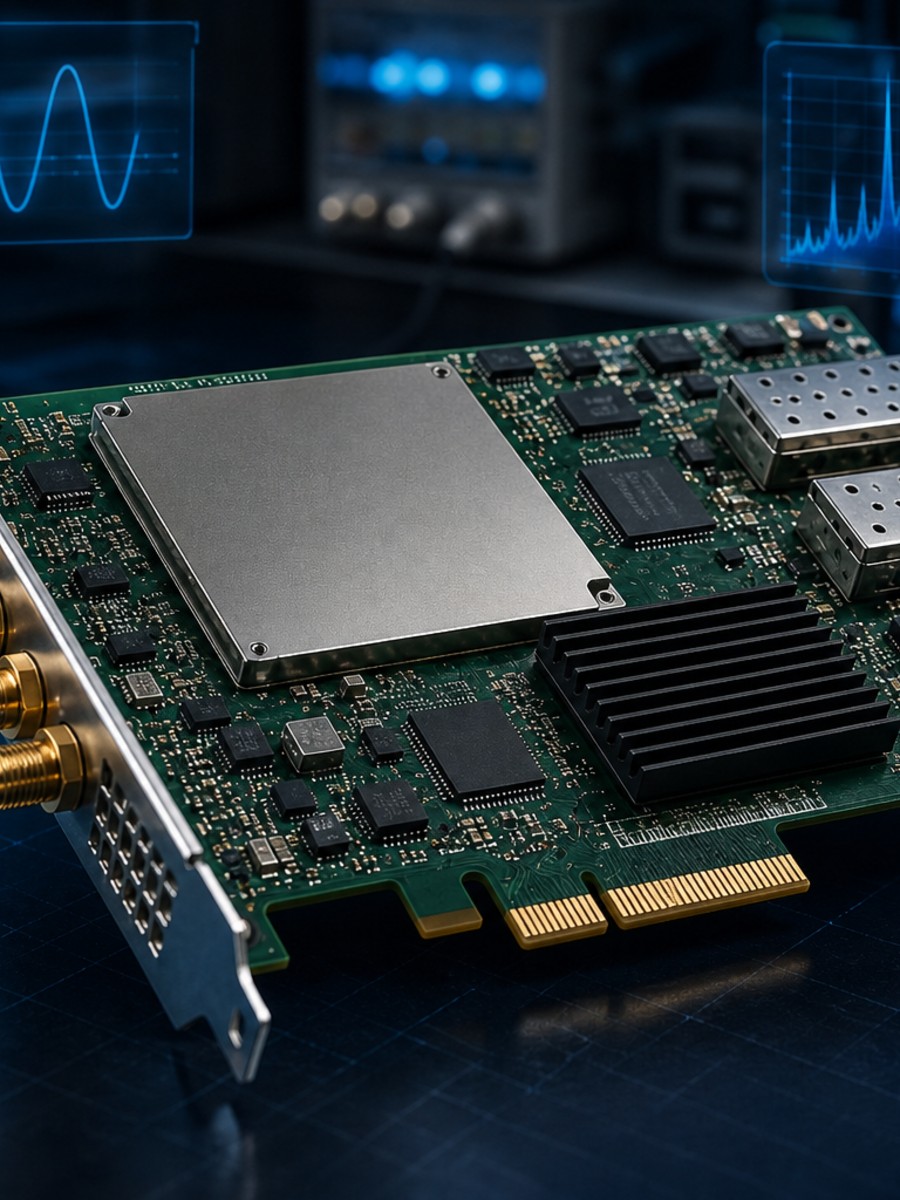

FMC+ / AD9082 MxFE Board
The FMC+ AD9082 MxFE card converts digital IQ streams from the FPGA into analog/RF output. Thanks to Analog Devices MxFE architecture, a 4-channel high-speed DAC and 2-channel ADC operate together on a single integrated circuit.
It is intended for electronic warfare scenarios where up to 1 million pulses per second can be generated in analog form, with wide instantaneous bandwidth and high SFDR performance (~40 dBc). FM, PM, and S-RF modulation types are supported.
It is intended for electronic warfare scenarios where up to 1 million pulses per second can be generated in analog form, with wide instantaneous bandwidth and high SFDR performance (~40 dBc). FM, PM, and S-RF modulation types are supported.
- DAC:12 GSPS
- ADC:6 GSPS
- Interface:JESD204B/C
- Bandwidth:~8 GHz
DAC and ADC Specifications
| Feature | Value / Description |
|---|---|
| DAC Channel Count | 4× channels |
| DAC Sampling Rate | 12 GSPS, 16-bit |
| DAC Synthesis | DDS (Direct Digital Synthesis) |
| DAC Bandwidth | ~8 GHz analog bandwidth |
| ADC Channel Count | 2× channels |
| ADC Sampling Rate | 6 GSPS, 12-bit |
| ADC Bandwidth | ~8 GHz analog input bandwidth |
Interfaces and Clock
| Feature | Value / Description |
|---|---|
| FPGA Interface | HSPC / VITA 57 FMC+ connector — GTY/GTH high-speed serial links |
| Data Interface | JESD204B/C — 8 lanes, up to 24.75 Gbps |
| Configuration | SPI, I2C, JTAG |
| Clock Input | DEV_CLK + SYSREF — via carrier; optional RF synthesizer |
| RF Outputs | 6× SSMC/SMA RF connector |
| Power | 12V + 3.3V_AUX (FMC+ power rails) |
Performance Targets
| Feature | Value / Description |
|---|---|
| DTK Generation Rate | 1 million pulses per second (system integration target) |
| IQ Generation Rate | 1 million I and Q data pairs per second |
| SFDR Performance | ≥40 dBc spur (within instantaneous bandwidth) |
| Modulation Types | FM / PM / S-RF — time-shared multi-emitter support |
Technical specifications
MxFE performance advantages
Provides ~8 GHz analog bandwidth with 4-channel 12 GSPS DAC and 2-channel 6 GSPS ADC.
- 12 GSPS 16-bit DAC (4 channels)
- JESD204B/C 8-lane interface
- 6 GSPS 12-bit ADC (2 channels)
- FM/PM/S-RF modulation support
Conclusion
High-speed analog/RF conversion
Together with the FPGA Carrier Card, the AD9082 MxFE card completes a fully modular digital signal generator solution for electronic warfare and radar applications.
